Ranges Of Sliding Windows

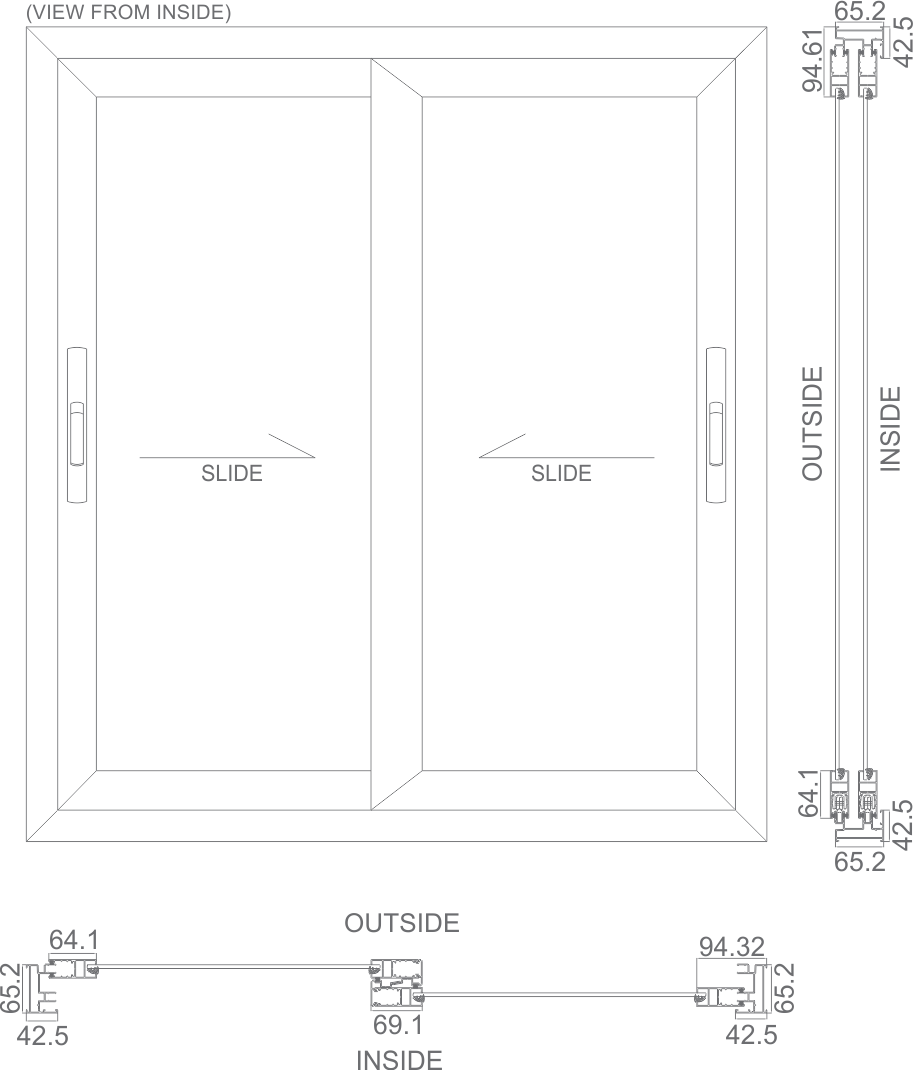

SL-26R
An ideal solution for apartment flats and commerical building offering impressive and functional results
- Shutter Size - 25 mm x 64 mm
- 2Track - 65 mm x 42.5 mm
- 3Track - 101 mm x 42.5 mm
- Interlock Visible - 69.1 mm
- Window Height - Max. 2100 mm
- Sash Weight - Max. 70 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector / 90°
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - 5 mm to 16 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

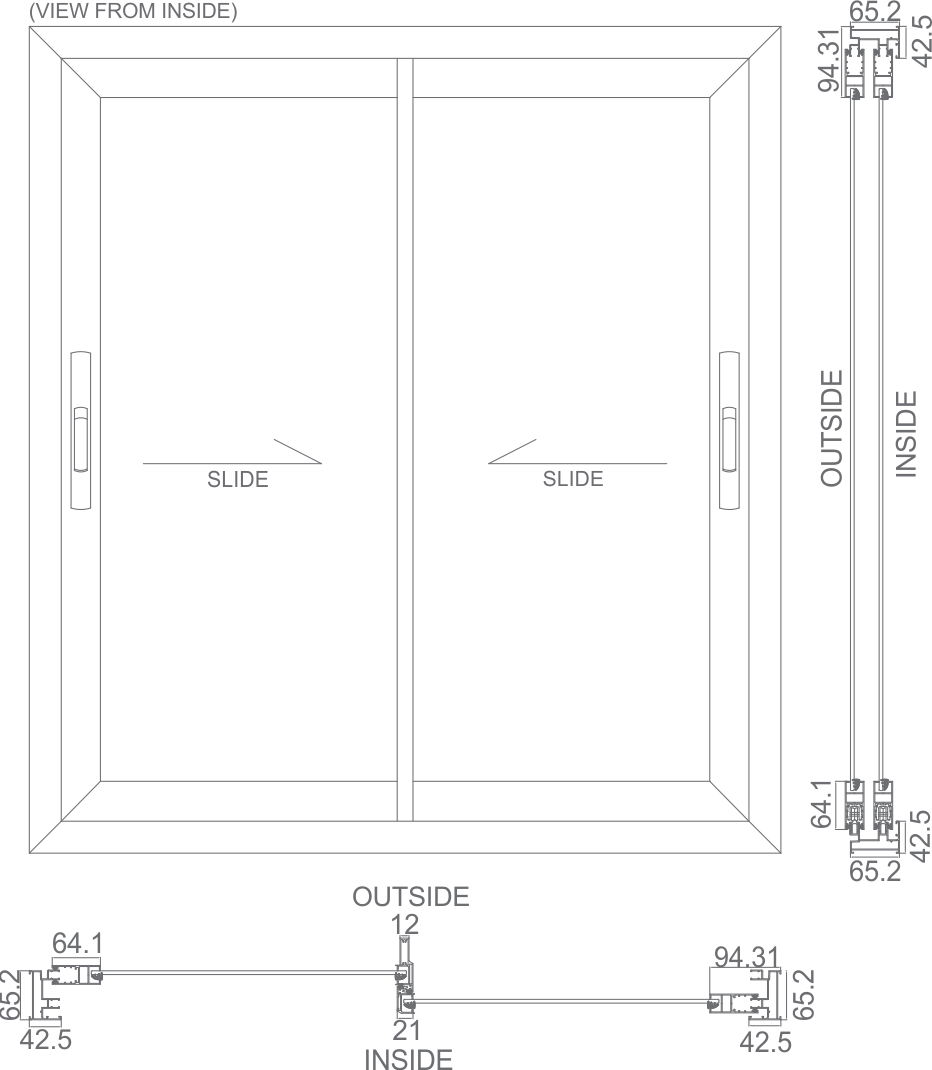

SL-26S
A Sleek and classic range for residence, flats and commercial buildings.
- Shutter Size - 25 mm x 64 mm
- 2Track - 65 mm x 42.5 mm
- 3Track - 101 mm x 42.5 mm
- Interlock Visible - 21 mm
- Window Height - Max. 2100 mm
- Sash Weight - Max. 70 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector / 90°
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - 5 mm to 16 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

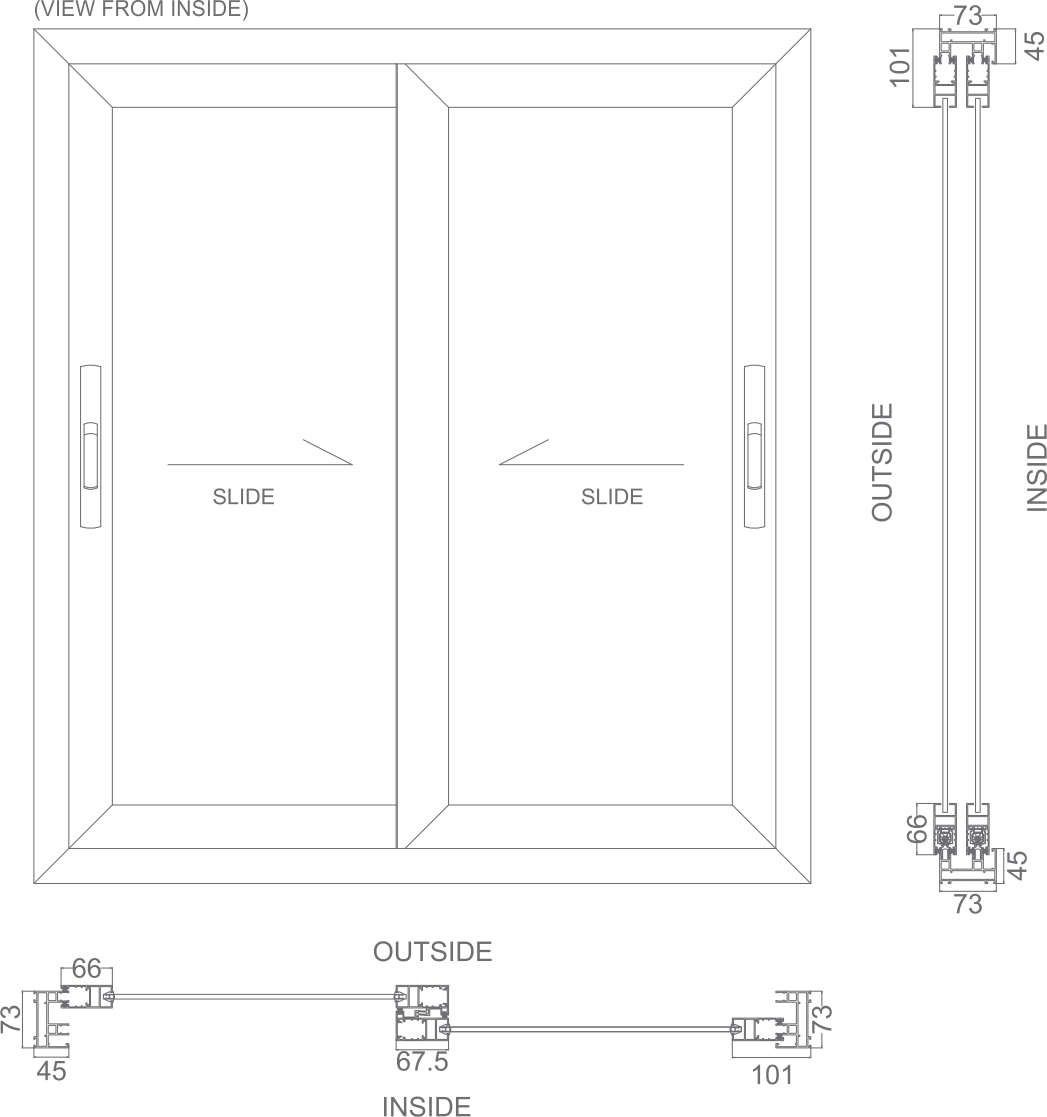

SL-31R
An ideal solution for residential bungalows, villas, and apartment flats offering impressive and functional results.
- Shutter Size - 29 mm x 66 mm
- 2Track - 73 mm x 45 mm
- 3Track - 115 mm x 45 mm
- Interlock Visible - 67.5 mm
- Window Height - 3000 mm
- Sash Weight - 180 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - Min. 5 mm Max. 22 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

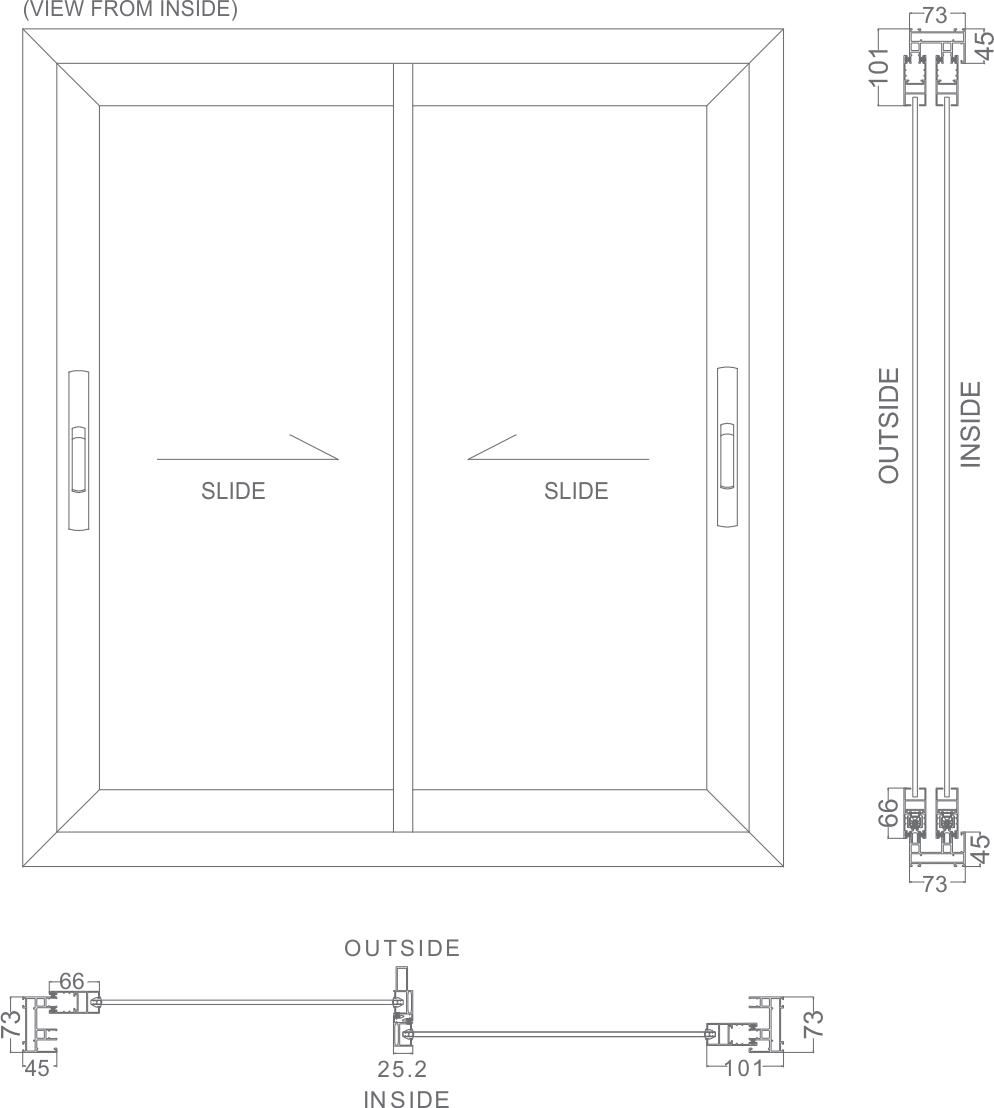

SL-31S
A Sleek solution for residential bungalows, villas, and apartment flats offering impressive and functional results.
- Shutter Size - 29 mm x 66 mm
- 2Track - 73 mm x 45 mm
- 3Track - 115 mm x 45 mm
- Interlock Visible - 26 mm
- Window Height - 3000 mm
- Sash Weight - 180 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector / 90°
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - Min. 5 mm Max. 22 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

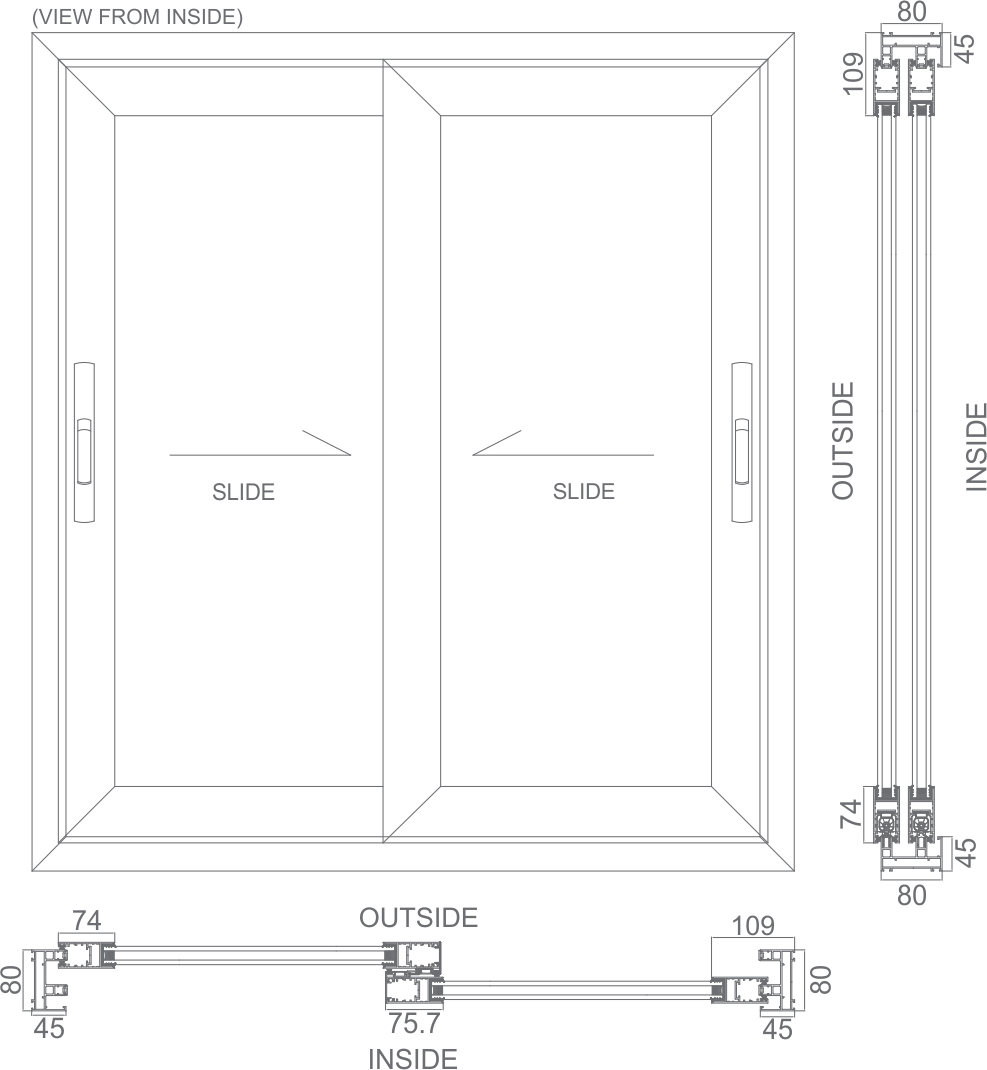

SL-34
It has been exclusively designed for comfortable interiors and visual aesthetics. It is multi-functional range that can be used for diverse spaces with great technique and supreme care. It is the product for better tomorrow.
- Shutter Size - 34 mm x 74 mm
- 2Track - 80 mm x 45 mm
- 3Track - 126 mm x 45 mm
- 4 Track - 171.4 mm x 45 mm
- Window Height - Max. 3600 mm
- Sash Weight - Max. 240 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - Min. 6 mm Max. 24 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

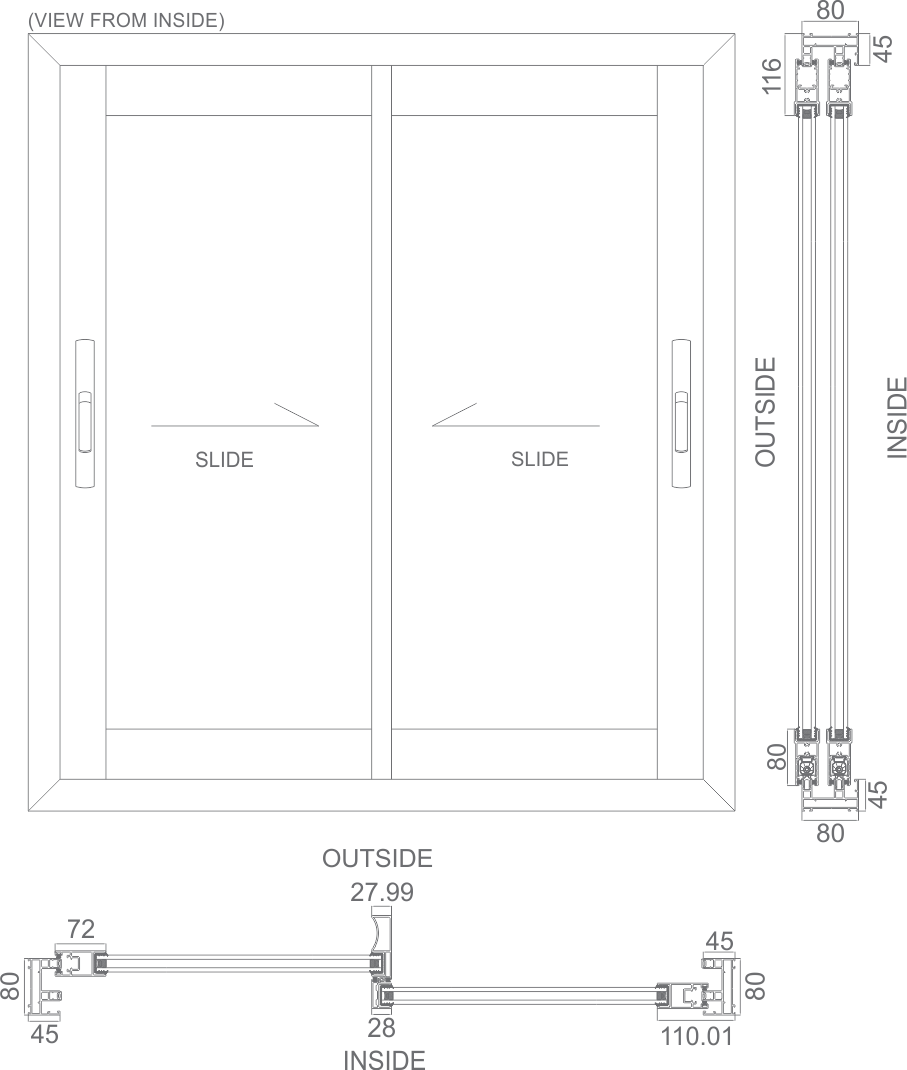

SL-36S
This is an ideal solution for residences, flats and commerical building offering impressive and functional results with great view. Sleek mullion minimises the impect of the window on view.
- Shutter Size - 36 mm x 72 mm
- 2Track - 80 mm x 45 mm
- 3Track - 126 mm x 45 mm
- 4 Track - 171.4 mm x 45 mm
- Interlock visible - 28mm
- Window Height - 3600 mm
- Sash Weight - 240 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 90° with screw fixing
- Glazing Options - Single, Laminated, DGU
- Glazing Thickness - Min. 6 mm Max. 24 mm
- Mosq. Mesh - Tear resistant Fibre Mesh / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

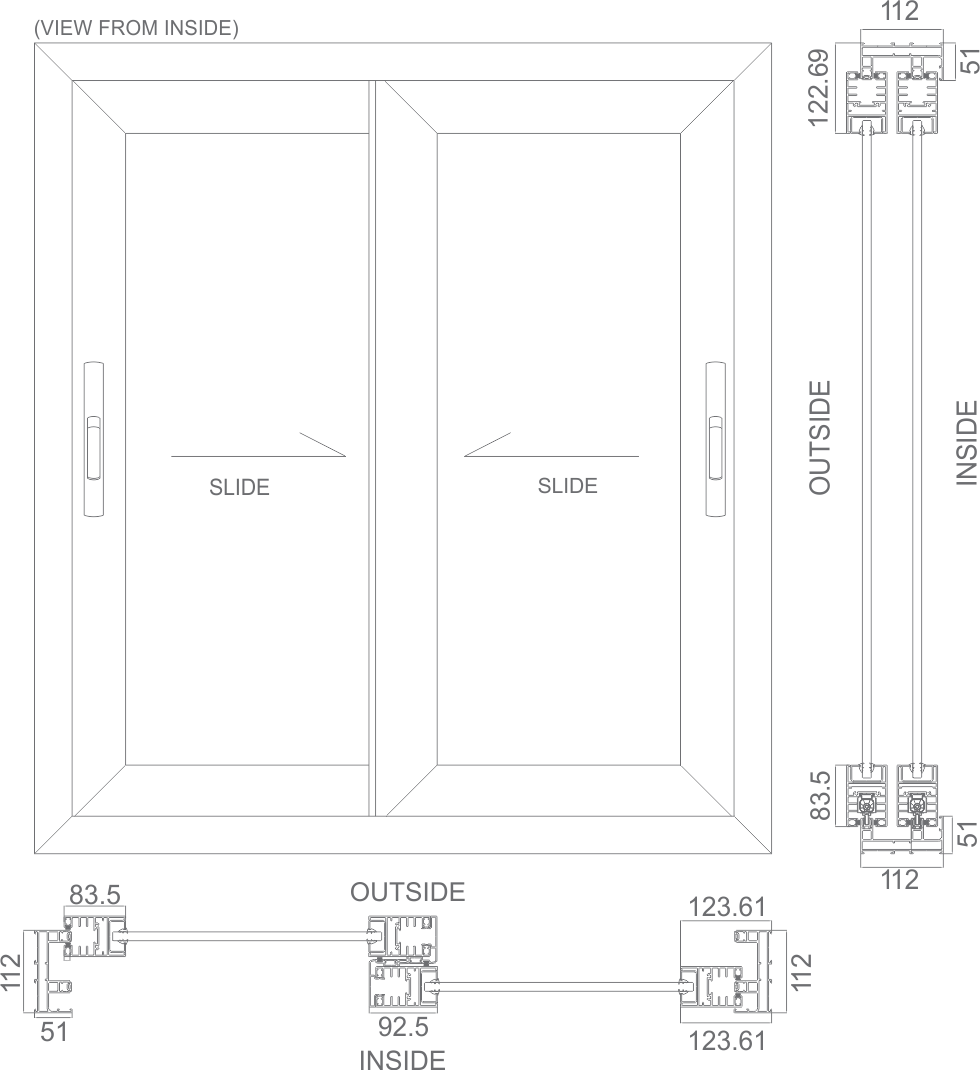

SL-55R
It has been exclusively designed to achieve highest strength and height. It is capable to withstand sash weight upto 220 kgs and height upto 3600 mm. Available with unique combination of manual and motorised integrated blinds
- Shutter Size - 55 mm x 83 mm
- 2Track - 112 mm x 51 mm
- 3Track - 181 mm x 51 mm
- Interlock visible - 92.5 mm
- Window Height - Max. 3600 mm
- Sash Weight - Max. 300 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector / 90° with screw fixing
- Glazing Options - Single / Laminated / DGU /DGU With Intigrated Blinds
- Glazing Thickness - Min. 12 mm Max. 44 mm
- Mosq. Mesh - Retractable / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

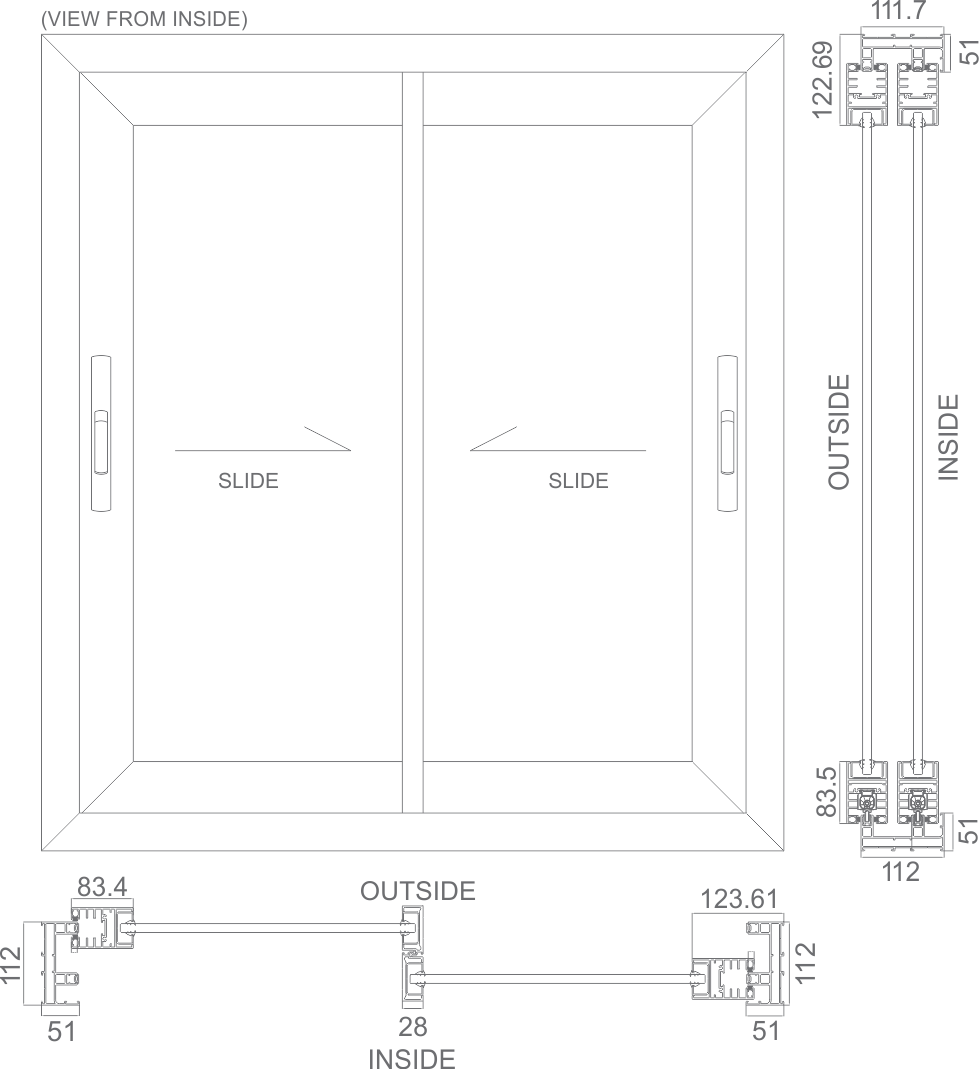

SL-55S
It has been exclusively designed to achieve highest strength and height. It is capable to withstand sash weight upto 220 kgs and height upto 3600 mm. Available with unique combination of manual and motorised integrated blinds.
- Shutter Size - 55 mm x 83 mm
- 2Track - 112 mm x 51 mm
- 3Track - 181 mm x 51 mm
- Interlock visible - 28 mm
- Window Height - Max. 3600 mm
- Sash Weight - Max. 300 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector / 90° with screw fixing
- Glazing Options - Single / Laminated / DGU /DGU With Intigrated Blinds
- Glazing Thickness - Min. 12 mm Max. 44 mm
- Mosq. Mesh - Retractable / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating

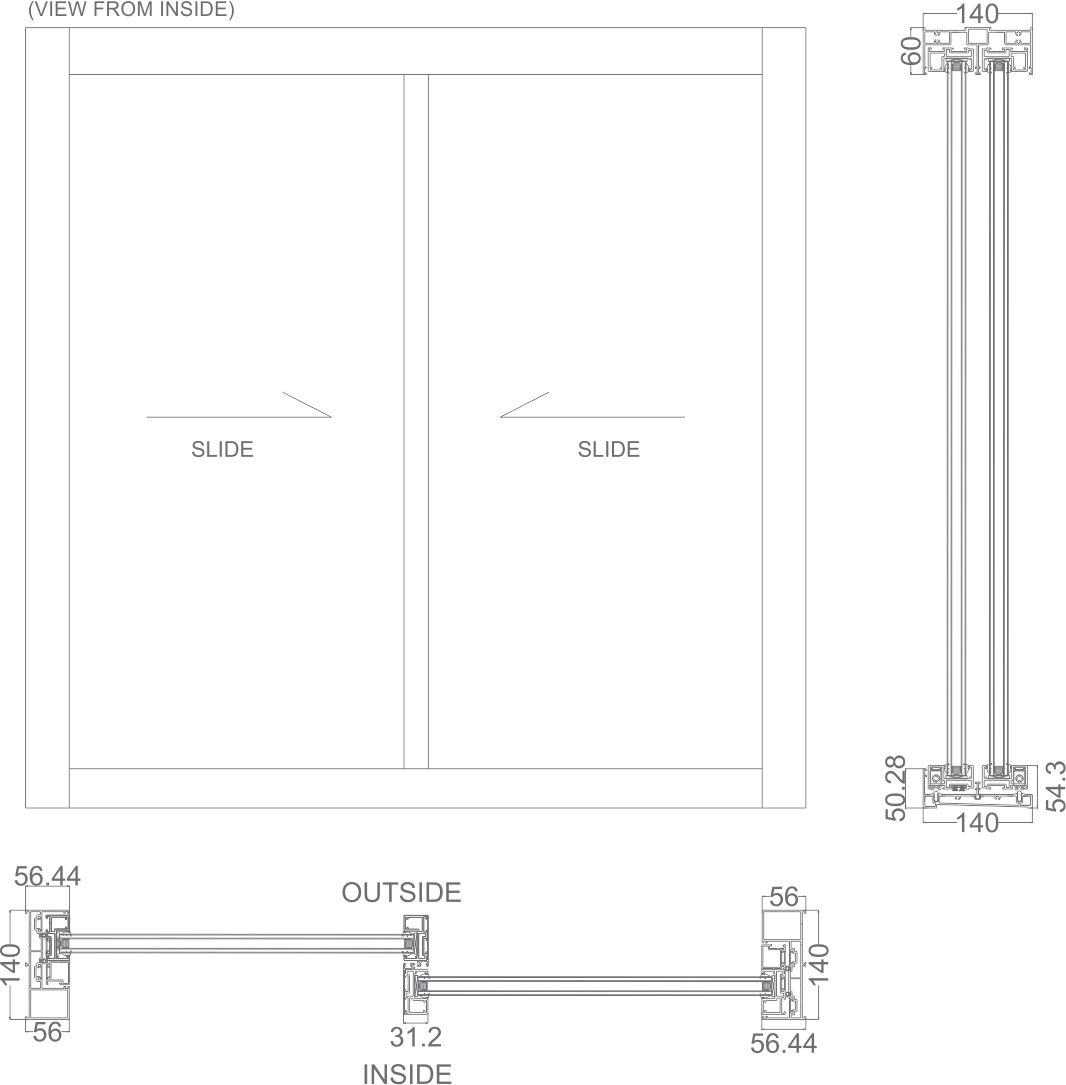

Slim-30
The perfect solution to give your home a modernized and slim look. Slim 30 is designed exclusively to provide a Slim look.
- Shutter Size - 89 mm x 30 mm
- 2Track - 140 mm x 56 mm
- Interlock visible - 31.2 mm
- Window Height - Max. 3000 mm
- Sash Weight - Max. 180 Kgs
- Hardware - Multipoint Locking
- Joinery Detail - 90° with screw fixing
- Glazing Options - Single / Laminated / DGU
- Glazing Thickness - Min. 12 mm Max. 22 mm
- Mosq. Mesh - Retractable / S S 304 Safety Mesh
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating
