Ranges Of Casement Windows

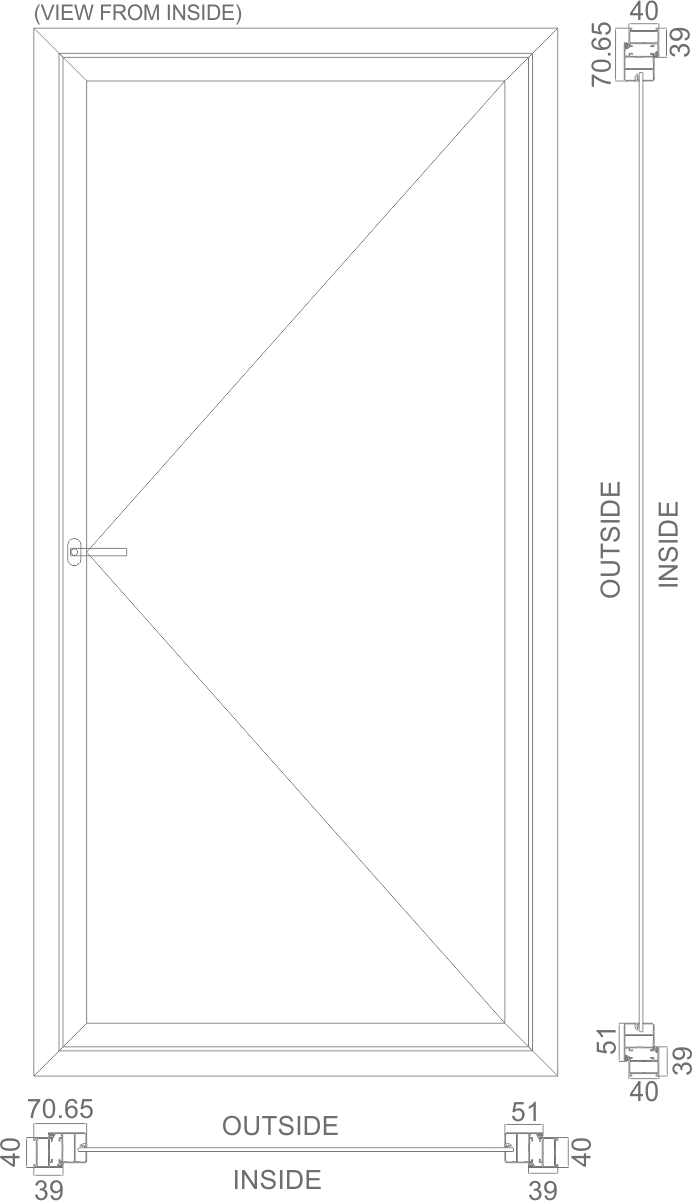

CV-40
It has been designed for smaller rooms, bathrooms, powder rooms and so on. It is designed taking into consideration the opening available and the quick ventilation needed for smaller rooms.
- Shutter Size - 40 mm x 51 mm
- Frame Size - 40 mm x 39 mm
- Window Height - Max. 1000 mm
- Sash Width - Max.600 mm
- Sash Weight - Max. 25 Kgs
- Hardware - Single / Multipoint Locking
- Joinery Detail - 45° with corner connector
- Glazing Options - Single
- Glazing Thickness - 5 mm / 6 mm (W/O. Glazing Clip
- Mosq. Mesh - Roll Down / Retractable
- Finish - Powder Coating (Satin / Textured Finish) Wood effect Powder Coating
- Opening - Side Hung / Top Hung

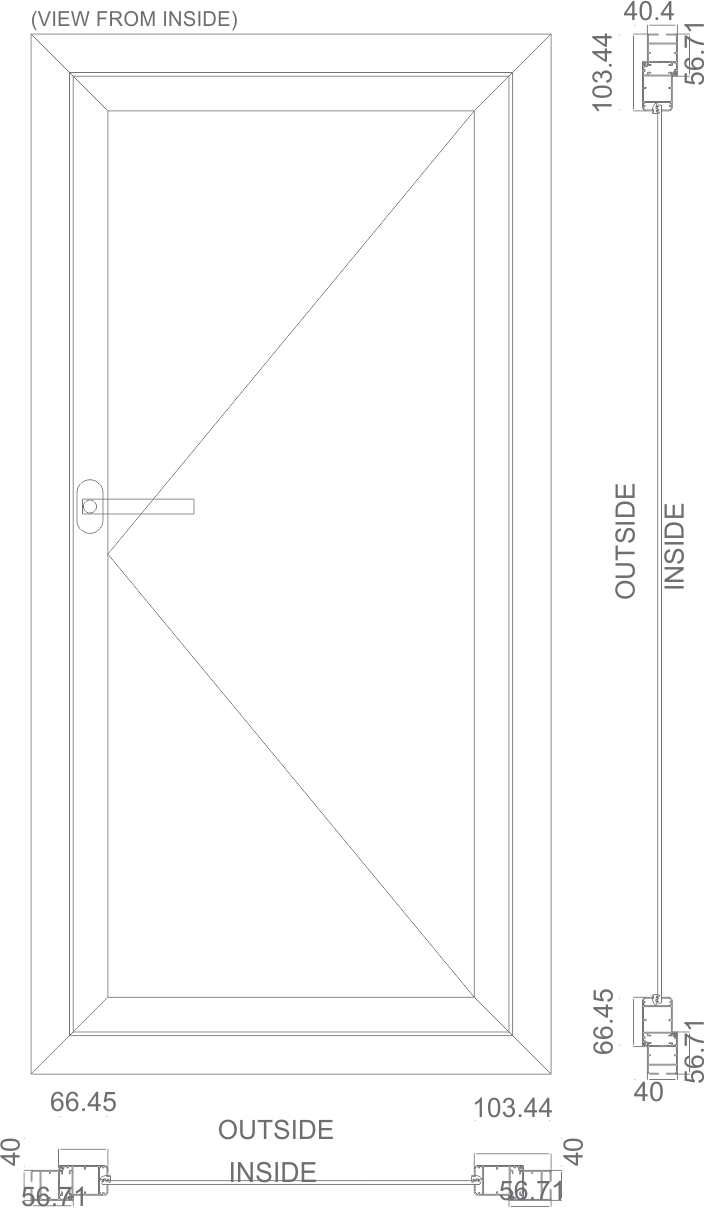

CW-40
An ideal solution for residences, apartment flats and commercial buildings. A specific design to regulate the uncertain weather, temperature and nature
- Shutter Size - 40 mm x 66 mm
- Frame Size - 40 mm x 56 mm
- Window Height - Max. 1800 mm
- Sash Width - Max. 650 mm
- Sash Weight - 50 Kgs
- Hardware - Single / Multipoint Locking
- Hinge - Butt Hinge / Friction Hinge
- Joinery Detail - 45° with corner connector
- Glazing Options - Single / Laminated / DGU / Movable Louvers
- Glazing Thickness - Min. 5 mm to Max. 20 mm (W/O. Glazing Clip)
- Mosq. Mesh - Roll Down / Retractable
- Finish - Powder Coating (Satin / Textured Finish) Wood effect Powder Coating
- Opening - Side Hung / Top Hung

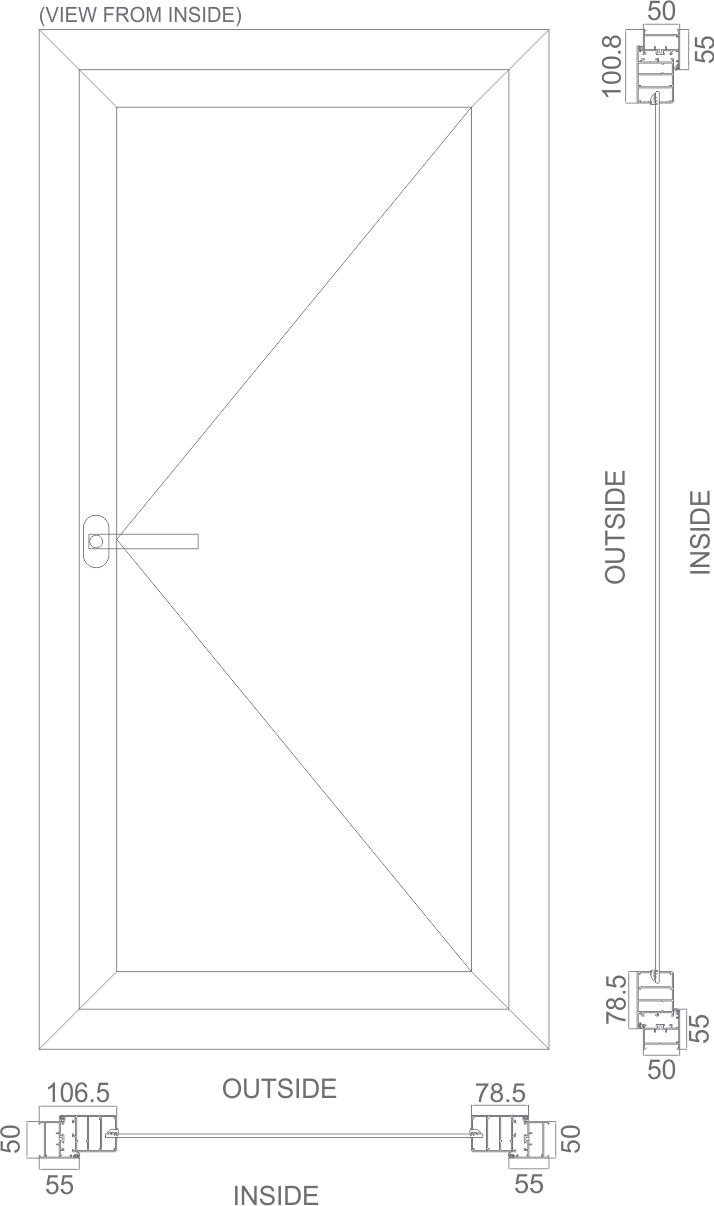

CW-50
It is the epitome in casement windows. Exclusively engineered for luxurious spaces like private villas, hotels, restaurants and corporate offices. This range aims for style, class and luxury. The most important benefit in this system is that, unlike other luxurious, aesthetic grandeur that you buy, this requires little to no maintenance and works and looks seamless for decades to come.
- Shutter Size - 50 mm x 78.5 mm
- Frame Size - 50 mm x 55 mm
- Window Height - Max. 2000 mm
- Sash Width - Max. 700 mm
- Sash Weight - Max. 80 Kg.
- Hardware - Single / Multipoint Locking
- Hinge - Butt Hinge / Friction Hinge
- Joinery Detail - 45° with corner connector
- Glazing Options - Single / Laminated / DGU / DGU With Integrated Blinds
- Glazing Thickness - Min. 5 mm to Max. 39 mm (With Glazing Clip)
- Mosq. Mesh - Roll Down / Retractable
- Finish - Powder Coating (Satin / Textured Finish) Wood effect Powder Coating
- Opening - Side Hung / Top Hung
