Ranges Of Casement Door

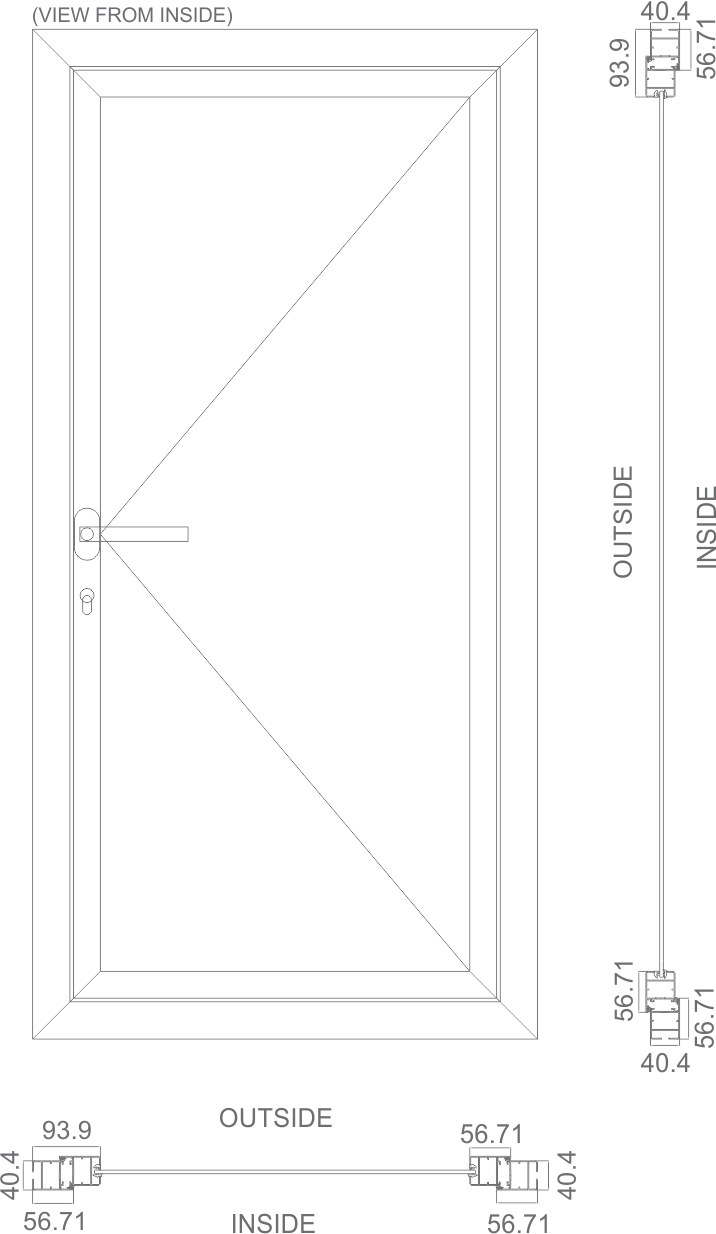

CD-40
It is an ideal solution for residences, apartment flats and commercial building offering impressive looks and functional excellence.
- Shutter Size - 40 mm x 85 mm
- Frame Size - 40 mm x 56 mm
- Door Height - Max. 2400 mm
- Sash Width - Max. 1100 mm
- Sash Weight - Max. 100 Kgs
- Hardware - Single point Locking
- Hinge - Butt Hinge
- Joinery Detail - 45° with corner connector
- Glazing Options - Single glass / HPL sheet
- Glazing Thickness - Min. 4 mm to Max. 8 mm (W/O. Glazing Clip)
- Mosq. Mesh - Roll Down / Retractable
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating
- Opening - Side hung

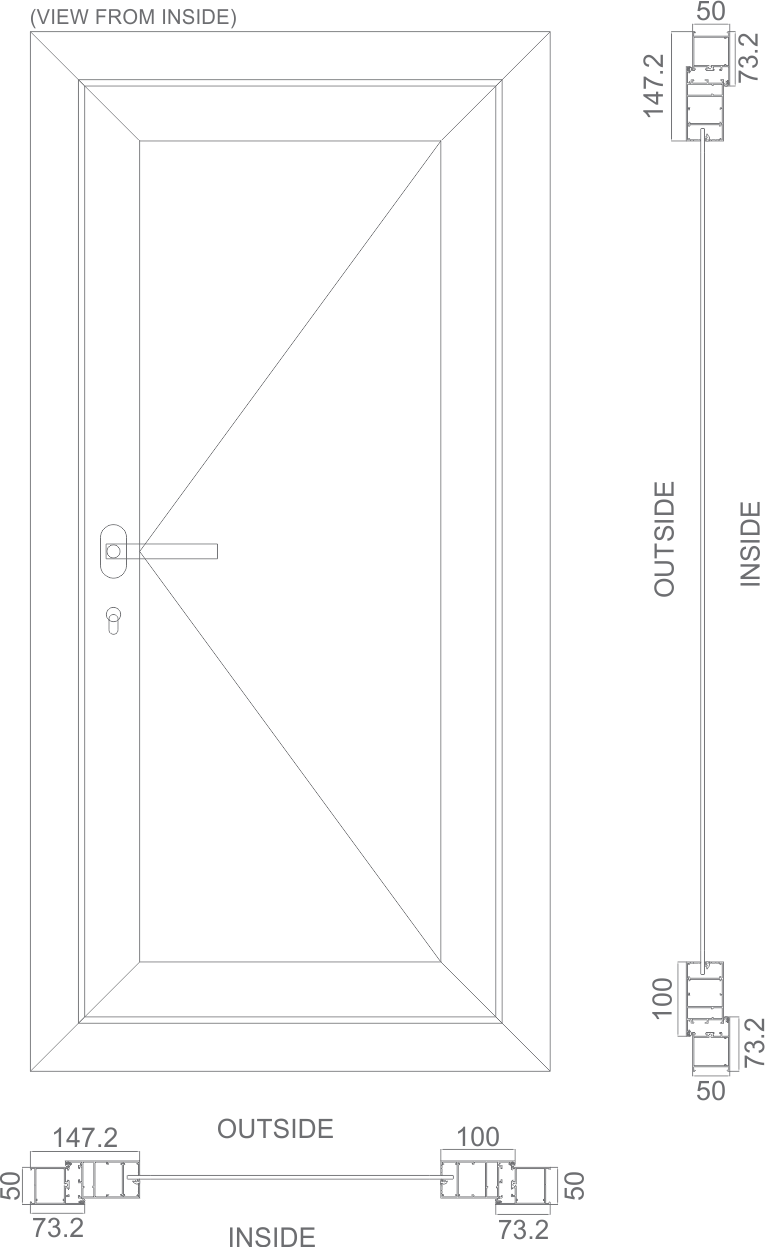

CD-50
It is exclusively designed for bigger door openings and is compatible to fit safety glass and glass with integrated blinds.
- Shutter Size - 58 mm x 92.5 mm
- Frame Size - 50 mm x 73 mm
- Door Height - Max. 3000 mm
- Sash Width - Max. 1200 mm
- Sash Weight - Max. 120 Kg.
- Hardware - Single / Multi-point Locking
- Hinge - Butt Hinge
- Joinery Detail - 45° with corner connector
- Glazing Options - Single / Laminated / DGU / DGU With Intigrated Blinds
- Glazing Thickness - Min. 5 mm Max. 39 mm (W/O. Glazing Clip)
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating
- Opening - Side hung

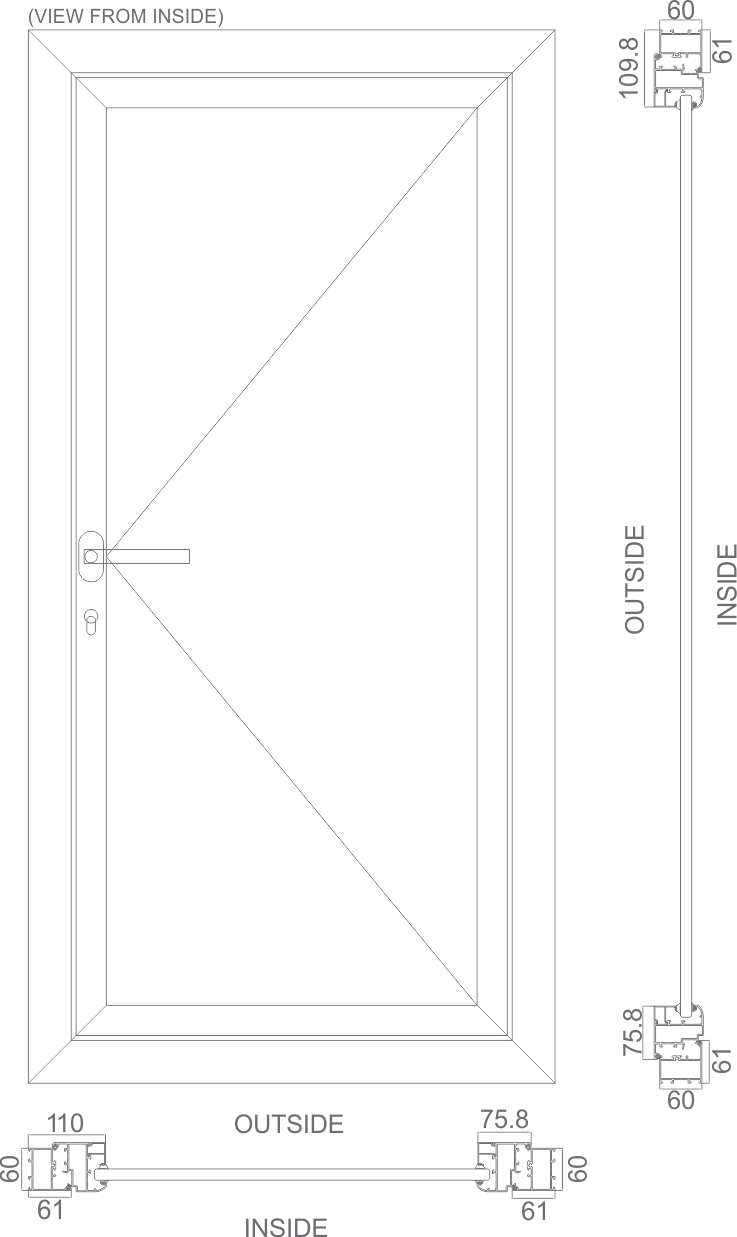

CD-60
It is exclusively designed & engineered for heavy industrial application, recurring use over years and inside/inward opening.
- Shutter Size - 70 mm x 77 mm
- Frame Size - 60 mm x 61 mm
- Door Height - Max. 3000 mm
- Sash Width - Max. 1200 mm
- Sash Weight - Max. 120 Kg.
- Hardware - Single / Multi-point Locking
- Hinge - Butt Hinge
- Joinery Detail - 45° with corner connector
- Glazing Options - Single / Laminated / DGU / DGU With Intigrated Blinds
- Glazing Thickness - Min. 5 mm Max. 39 mm (W/O. Glazing Clip)
- Finish - Powder coating (Satin / Textured finish) Wood effect powder coating
- Opening - Side hung
